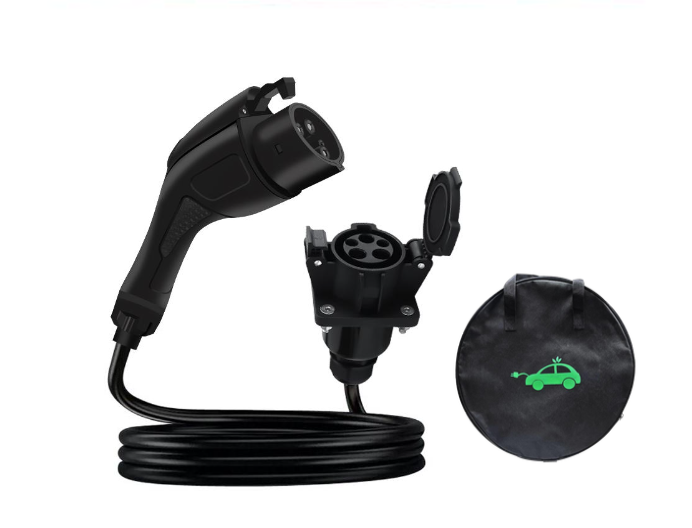

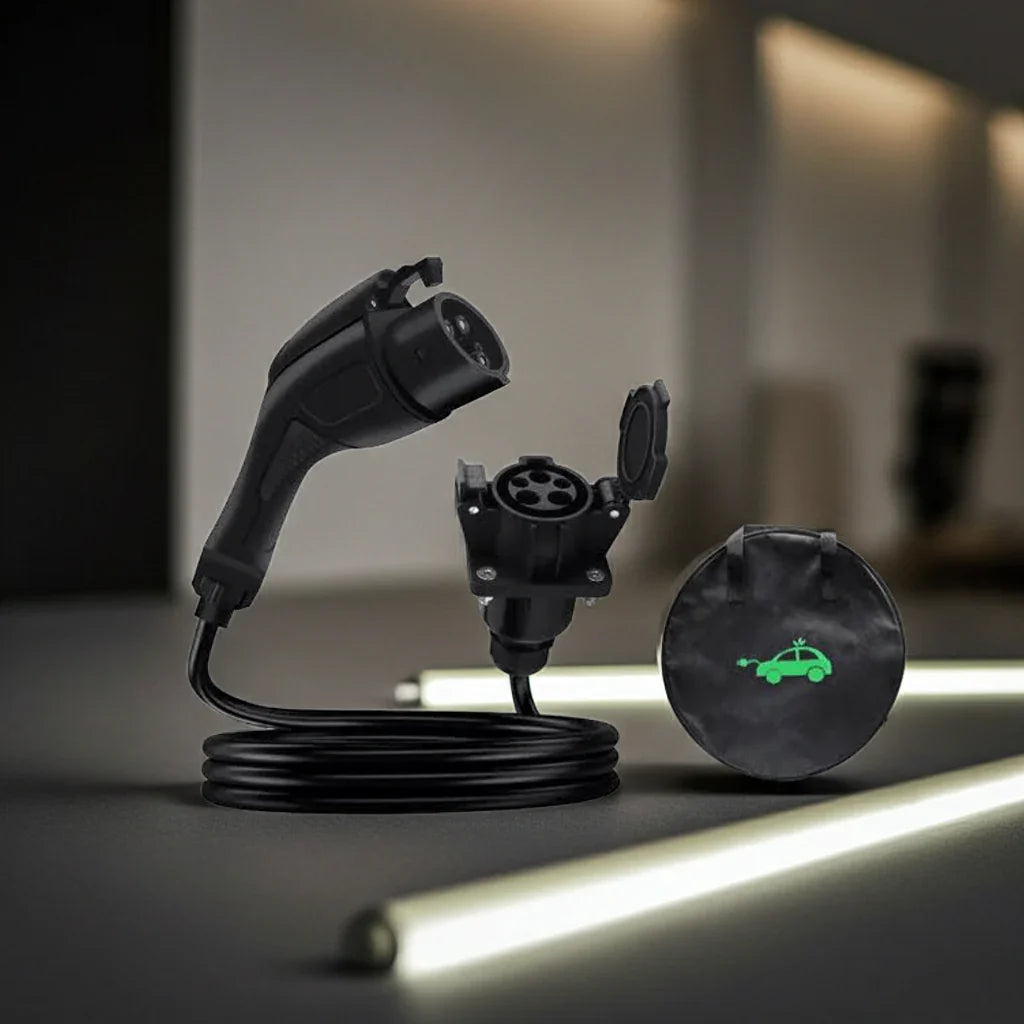

Type 1 EV Extension Cable, 110-240 V AC, dual-connector

Type 1 EV Extension Cable, 110-240 V AC, dual-connector

🔹 Model: MRS-AST-01

Connector Type: /
Product Type: Portable charging
Housing Material: PC9330
Device Size: 230×70×60mm (H×W×D)
Installation Method: /
Installation Components: /
Cable Routing: /
Device Weight: Approx. 3KG
Cable Spec: 10AWG/3C + 18AWG
Cable Length: 5 meters

Input Voltage: 110V–240V
Input Frequency: 50Hz / 60Hz
Maximum Power: 7.6kW
Output Voltage: 110V–240V
Output Current: 32A
Standby Power: /

Applicable Scenario: Indoor / Outdoor
Working Humidity: 5%–95% (non-condensing)
Working Temperature: -30°C to +50°C
Operating Altitude: < 2000m
Protection Level: IP54
Cooling Method: Natural cooling
Standard Compliance: SAE J1772
Flame Retardant Rating: UL94 V0
Product Certificate: Inspection report

User Interface: /
Communication Interface: /

Packaging Specification: /
Packaging Weight: /

Safety Protection: Undervoltage protection, Overvoltage protection, Overload protection, Overcurrent protection, Overtemperature protection, Leakage protection, Grounding protection, Lightning protection, Flame retardant protection

🔹 Model: MRS-AST-02

Connector Type: /
Product Type: Portable charging
Housing Material: PC9330
Device Size: 230×70×60mm (H×W×D)
Installation Method: /
Installation Components: /
Cable Routing: /
Device Weight: Approx. 3KG
Cable Spec: 9AWG/2C + 10AWG + 18AWG
Cable Length: 5 meters

Input Voltage: 110V–240V
Input Frequency: 50Hz / 60Hz
Maximum Power: 9.6kW
Output Voltage: 110V–240V
Output Current: 40A
Standby Power: /

Applicable Scenario: Indoor / Outdoor
Working Humidity: 5%–95% (non-condensing)
Working Temperature: -30°C to +50°C
Operating Altitude: < 2000m
Protection Level: IP54
Cooling Method: Natural cooling
Standard Compliance: SAE J1772
Flame Retardant Rating: UL94 V0
Product Certificate: Inspection report

User Interface: /
Communication Interface: /

Packaging Specification: /
Packaging Weight: /

Safety Protection: Undervoltage protection, Overvoltage protection, Overload protection, Overcurrent protection, Overtemperature protection, Leakage protection, Grounding protection, Lightning protection, Flame retardant protection

🔹 Model: MRS-AST-03

Connector Type: /
Product Type: Portable charging
Housing Material: PC9330
Device Size: 230×70×60mm (H×W×D)
Installation Method: /
Installation Components: /
Cable Routing: /
Device Weight: Approx. 3KG
Cable Spec: 8AWG×2C + 10AWG + 18AWG
Cable Length: 5 meters

Input Voltage: 110V–240V
Input Frequency: 50Hz / 60Hz
Maximum Power: 11.5kW
Output Voltage: 110V–240V
Output Current: 50A
Standby Power: /

Applicable Scenario: Indoor / Outdoor
Working Humidity: 5%–95% (non-condensing)
Working Temperature: -30°C to +50°C
Operating Altitude: < 2000m
Protection Level: IP54
Cooling Method: Natural cooling
Standard Compliance: SAE J1772
Flame Retardant Rating: UL94 V0
Product Certificate: Inspection report

User Interface: /
Communication Interface: /

Packaging Specification: /
Packaging Weight: /

Safety Protection: Undervoltage protection, Overvoltage protection, Overload protection, Overcurrent protection, Overtemperature protection, Leakage protection, Grounding protection, Lightning protection, Flame retardant protection

Standard delivery ：Each order undergoes manual verification prior to shipment. We appreciate your understanding.
